Description
  • Brand: Lepy
  • Audio Sensitivity: 0.25mv-50mv
  • Impedance: 4 – 8Ω
  • Signal To Noise Ratio: >80dB
  • Number of Channels: 4
  • Out Power: 40W
  • Frequency Range (Hz): 87.5MHz – 108.0MHz
  • Frequency Response: 20Hz – 20KHz
  • Material Type: Aluminum Alloy
  • Features:
    – T-Amp Tripath
    – Output Power 2 x 20W @ 4ohm, 2 x 12W @ 8ohm
    – Dynamic Range 98dB
    – IHF IM Distortion 0.1% @ 1W, 4ohm
    – THD Distortion
    – 0.1% @ 10W 4ohm
    – 10% @ 23W 4ohm
    – 10% @ 13W 8ohm

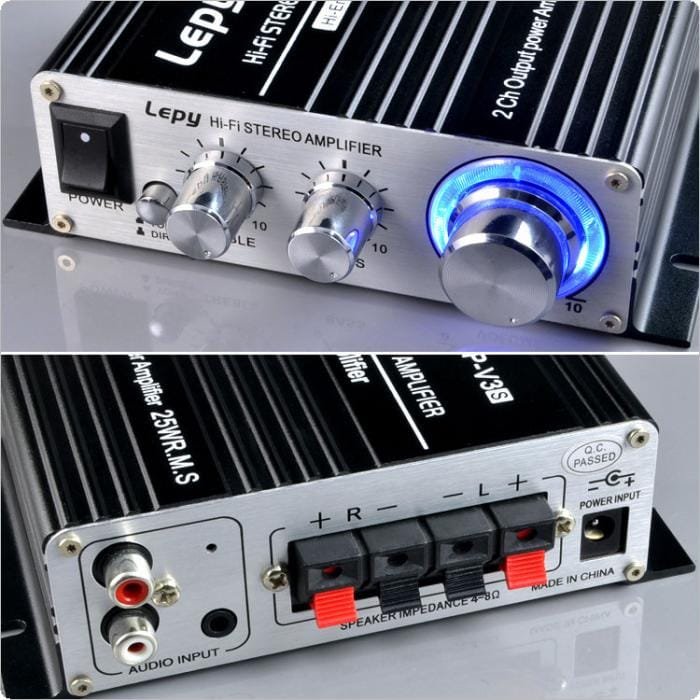

    – Aluminum alloy solid case and also easy to distribute the heat.

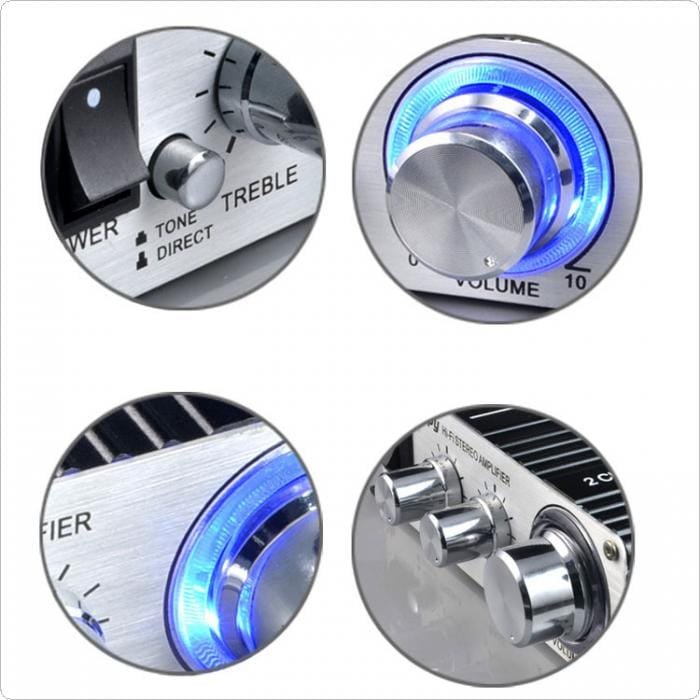

    – It has Blue LED light ring round Volume Knob; Bass/Treble tuning.
    – Mini size easy to installation by DIY without manual, especially good fit for car, motorcycle bike, boat, every where.
    – RCA Input, can be plug with Ip-od, MP3/MP4.
  • Input Sensitivity:

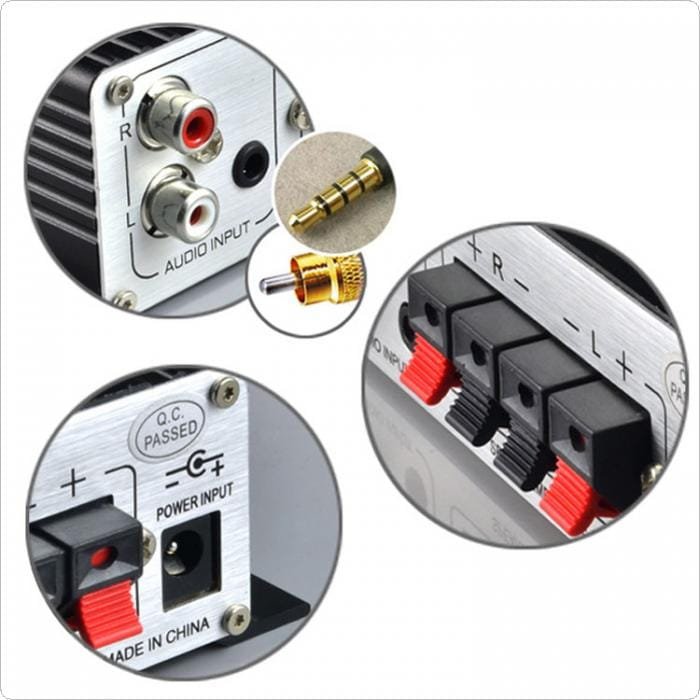

    – Audio IN: 1 x RCA, 1 x 3.5mm earphone jack
    – 1 x Power Socket(5.5mm/2.1mm)
  • Output:
    – Speaker OUT (Left) x 1 pair (+ / -)
    – Speaker OUT (Right) x 1 pair (+ / -)
    – Power Indicator (Blue LED) x 1
    – Power Supply input DC 9V~14.4V 5A
  • Power Efficiency: 81% at 20W, 4ohm, 88% at 12W, 8ohm
  • Power Input: DC 9 – 14.4V 5A
  • T.H.D.Rated RMS Power: < 0.1%at 1 KHZ
  • Place of Application: iPod
  • Package Weight: 276.0 G / 9.74 Ounces
  • Package Dimensions (L*W*H): 145*120*46 MM / 5.71*4.72*1.81 Inches
  • Retail Packaging: Yes, General Box
